Optim’Protec



Optim’Protec^®: is the close protection range for conveyor belts’ nip angles

With Optim’Protec^® , you secure your conveyors by doing away with the risk in accordance with EC norms.

Optim’Protec^® does away with the risk of accidents in the nip angles by doing away with the nip angle by implementing a fixed element:

• The nip angles are formed by two points turning in a converging manner.
  They are the most frequent source of accidents on conveyor belts. These accidents generally have very serious consequences.
  → Any object (garment) or limb (arm, hand) coming only slightly in contact with an nip angle will inevitably be dragged along at the same speed as the linear movement of the pieces transported.

This means that with a belt moving at 1m/sec, an arm caught in an nip angle will be torn off in seven tenths of a second…
be torn off in seven tenths of a second …
There is no exit from an nip angle without consequences…

• Most accidents take place during maintenance and when adjusting conveyor belts: the Optim’Protec^® protects all production operators, maintenance personnel and any other interveners in the same way also during maintenance and when adjusting the operation of conveyor belts.

Your benefits

• Permanent abolition of the risks at protected locations
• The best quality-price-return-durability ratio
• Simple systems in accordance with EC norms
• Permanently fixed and foolproof systems
• Adjustment of the lower rollers facilitated to the maximum: protection moves automatically with the supports and the roller and remains perfectly adjusted at all times
• Improved valuation of productivity: people feel better, work is more efficient in the secure zone, no accidents
• No shaped or moulded part linking you to the supplier

Our technical advantages

• Innovative protection systems, very simple and very robust
• Optim’Protec^® products are foolproof
• Modular standardized construction suitable for heavy industry, quarries and all industries
• Models for the food industry
• Specific models for bi-directional conveyors
• In stock for most models of conveyor belts constructed in accordance with the norms PNE 53300, NFE 53301 and DIN
• We can deliver complete and pre-assembled sets according to your needs: support ± roller ± protection ± restraining straps, etc
• Conformity to EC norms (requires no protection grating)

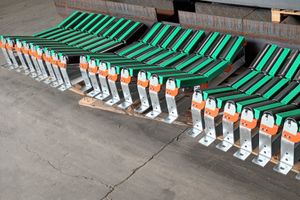

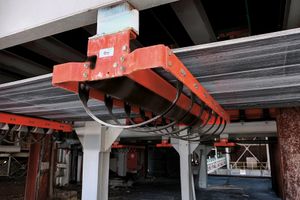

Optim’Protec-RS®	Optim’Protec-RI®	Optim’Protec-RI-SR®
Close protection of nip angles between belt and rollers for upper rollers – In accordance with EC norms – Standardization in accordance with norms : ··PNE 53 300 ··NFE 53 301 ··DIN – Simple system, foolproof fixing – Easy replacement of roller	Close protection of nip angles between belt and rollers for lower rollers located at less than 2 metres high. – In accordance with EC norms – Standardization for rollers Ø89 and Ø 133 according to the norms: ··PNE 53 300, NFE 53 301, DIN – Simple system, foolproof fixing – Possible implementation on existing transporter: replaces existing roller supports (PNE, NFE, DIN) – Upgradable in RI-SR	Close protection of nip angles between belt and rollers for lower rollers located at more than 2 metres high. – Same characteristics as the Optim’Protec-RI® but with anti-fall restraining straps below the return roller – The straps are made of reinforced rubber. – The straps cannot be sealed or folded.

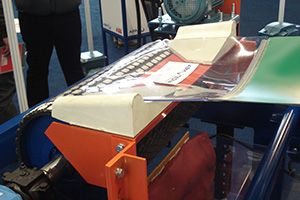

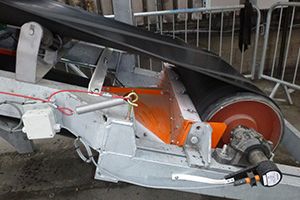

Optim’Protec-TT®	Optim’Protec-TR-Ve®
Close protection of nip angles of head pulley – In accordance with EC norms – Complete standardized models according to belt width, length and Ø of pulley – Delivery as one pre-assembled piece ready for implementation – Implementation: we indicate the points X-Y in relation to the pulley’s axis.	Close protection of nip angles of (return) tail pulleyntry – In accordance with EC norms – Prevents access to the front, rear, the sides and underneath the return pulley – Also serves as cow-catcher on inner face of the belt before the return pulley – Standardized elements according to belt width, length and Ø of pulley – Delivery as one pre-assembled piece ready for implementation – Implementation: we indicate the points X-Y in relation to the pulley’s axis. -Self-adjusting: placed on the belt, it is moved horizontally with the pulley and vertically with the belt

Guarantee

• The conveyor belt always complies with EC norms and requires no adjusting in areas fitted with an Optim’Protec^®



The Optim’Protec^® is the indispensable complement for securing a conveyor belt above the feeding zone fitted with an Optim’Auge^®.
